SYMAP®ARC is a protection system that detects an electric arc caused by a short circuit through an optical sensor and the load current input on the system to ensure the fast clearance of arc faults on an electrical system with short tripping time (< 2ms).

Arc protection system for low and medium voltage applications

  • modular, expandable system with easy DIN rail installation
  • stainless steel housing for high EMC safety
  • simple system: tripping only with light criteria
  • complex system: arc detection and tripping, current rate of change detection (di/dt), zone and cable compartment selectivity
  • protects human life
  • reduces damage impact
  • improves availability of vessels or plants

Master module
ARC-MS Master Simple module providing trip contacts and interlink to connect light detection modules
ARC-ME Master Extended module providing trip contact, current measurement and interlink to connect light detection modules. Optional HMI and quenching device
Light detection module
ARC-LS3T Up-to 3 Light Sensors and one fast Tripping output
Optional module
ARC-HMI Human Machine Interface to operate the extended arc protection system
ARC-IGN-A IGNition module including system cable to operate external quenching device
Light sensors
ARC-LLS Light Line Sensor length: 10/15/20/25m active sensor part is 5 m less
ARC-LPS Light Point Sensor length: 3/5/10m intermediate sizes available

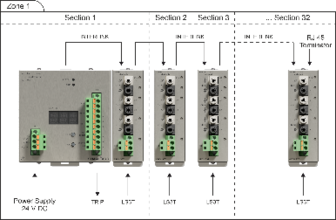

SIMPLE arc protection system
Features:
  • stainless steel housing
  • easy mounting on DIN rail TS35
  • up-to 31 light detection modules can be connected to the master module via INTERLINK communication
  • up-to 100m of INTERLINK length between the master module and the last connected light detection module
  • 15 segment displays for status and alarms
  • 3 fast binary outputs with ≤ 2ms tripping time
  • 1 binary output for alarm indication
  • 1 binary Watch Dog output (system supervision)
  • no parameter setting required!

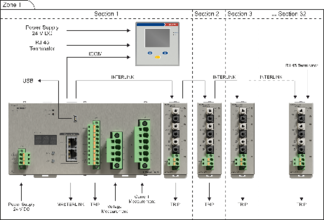

EXTENDED arc protection system

(Parameterizing required)

Features:

included are all features of Level 1! PLUS…

  • voltage and current measurement
  • rate of change of current di/dt as additional protective criterion for a safe tripping in fault conditions
  • SYMAP®ARC Parameter Tool (SAPT) allows easy system configuration and adaptation to the individual application
  • cable compartment selectivity

Options

  • optional connection of ARC-IGN-A to operate separate quenching device
  • optional connection of detached Human Machine Interface ARC-HMI for user-friendly operation
COMPLEX arc protection system
Features:

Included are all features of Level2! PLUS…

  • up-to 8 extended arc protection systems can be linked together via MASTERLINK connection
  • up-to 100m MASTERLINK length between 2 ARC-ME master modules
  • MASTERLINK topology: line or ring (redundancy)
  • zone protection
